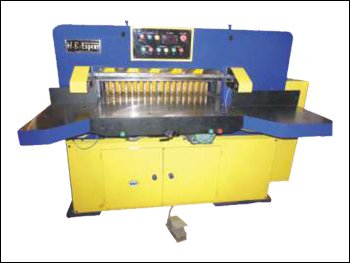

Economy Model
» Hydraulic Clamping device is provided telescopic double pressure cylinder with in single pressure knob to adjust the desire clamping pressure.
» Main table with all nozzles for easy movement of bulky material. Side Table covered with air nozzles.
Standard Accessories
1. Two cutting knives (one ??tted on the machine)
2. One set of tools
3. Electrical Diagram
| Machine Size | 33" (840 mm) | 37" (940 mm) | 43" (1092 mm) | Max. Cutting Width | 33" (840 mm) | 37" (940 mm) | 43" (1092 mm) |
| Max. Cutting Height | 4½" (114 mm) | 4¾" (120 mm) | 5" (127 mm) | Min. Cutting Width | 1" (25 mm) | 1" (25 mm) | 1" (25 mm) |
| Cuts Per Minute | 25-30 | 20-25 | 20-25 | Main Power Required | 2 HP (3 Phase) | 3 HP ( 3 Phase) | 3 HP ( 3 Phase) |
| Dimension (LxWxH) | 74"x64"x60" | 80"x70"x65" | 87"x76"x68" | Weight Approx. | 1700 Kgs. | 1800 Kgs. | 2000 Kgs. |
